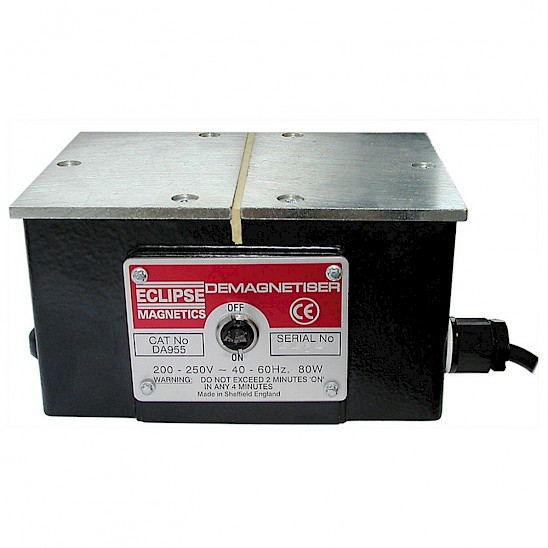

Table Top Demagnetiser
Demagnetiser for removing residual magnetism
- Removes magnetism which may remain after workholding
- Simple operation- part is simply drawn across the top plate
- 3 power supply options available
- CE approved
产品概览 - Table Top Demagnetiser
Lightweight unit for the removal of residual magnetism following grinding. Some materials retain magnetism following long periods of magnetic clamping. The more alloys in the material the more magnetism will be retained.
产品型号
| 产品型号 | Depth (mm) | Height (mm) | Voltage (v) | Width (mm) | Unit weight (kg) | Width (in) | Height (in) | Depth (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|---|---|
| DA955/UK | 87 | 117 | 220/240 | 150 | 3.83 | 5.9 | 4.61 | 3.43 | 8.43 |
| DA955/EUR | 87 | 117 | 220 | 150 | 3.83 | 5.9 | 4.61 | 3.43 | 8.43 |
| DB956/EUR | 87 | 117 | 110 | 150 | 3.83 | 5.9 | 4.61 | 3.43 | 8.43 |
