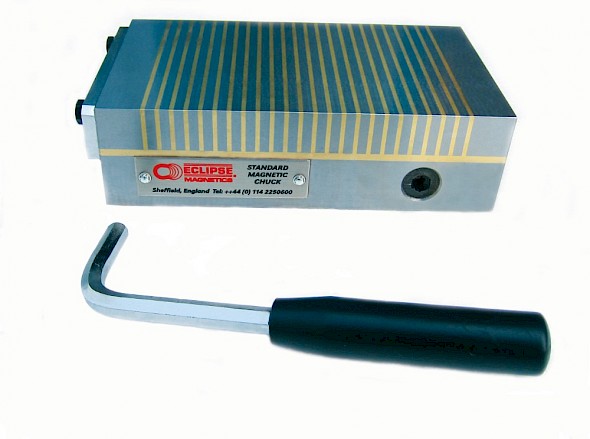

Rectangular Standard Chuck

Fast, accurate clamping for grinding and machining components

All metal top plate - high accuracy and long lifespan
High corrosion resistance - resists damage from coolants
Chrome plated side and end stops - accurate location

Download Magnetic Workholding Brochure

咨询报价

产品概览 - Rectangular Standard Chuck

Cost effective, fast and accurate clamping in grinding applications

Cost-effective permanent magnetic chucks for grinding applications, fine or standard pole options. Our Standard range chucks provide high performance at an extremely competitive price. Available in a choice of 2 pole formats, the standard chucks are manufactured from steel and brass with neodymium magnets located in the top plate to enhance performance. Ideal for thin and small workpieces from 3mm to 0.7mm. Thick Standard pole - ideal for clamping thicker workpieces >3mm.

Base plate - for fixing to a machine bed (clamps supplied)
Simple on-off switching - removable operating handle
Failsafe permanent magnetic technology

想了解更多？请联系我们

产品型号

产品型号	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
Standard
ERSP1018	180	100	50	9.5
ERSP1325	255	130	50	15
ERSP1530	300	150	50	20.5
ERSP1535	350	150	50	23.5
ERSP1545	450	150	50	30
ERSP2060	600	200	50	52
Fine
ERFP1018	180	100	50	9.5
ERFP1325	255	130	50	15
ERFP1530	300	150	50	20.5
ERFP1535	350	150	50	23.5
ERFP1545	450	150	50	30
ERSP2060	600	200	50	52
