Rubber Covered Neodymium Magnet

Strong adhesion with surface protection against scratching or marking

  • Santoprene Rubber coating for scratch-free clamping
  • Neodymium Magnets (NdFeB) inside for maximum holding forces
  • Extremely good sheer forces - high resistance to sliding
  • Protects surfaces such as lacquered mild steel car body work
  • Maximum recommended operating temperature is 60°C

产品概览 - Rubber Covered Neodymium Magnet

The multiple pole design of these rubber coated Neodymium (NdFeB) pot magnets ensures a dense shallow magnetic field on the holding surface. This allows for excellent holding onto thin, lacquered car body metal. The sideways displacement (sheer forces) are extremely good due to the suction effect of the rubber surface.

Rubber Coated Neodymium Pot Magnets

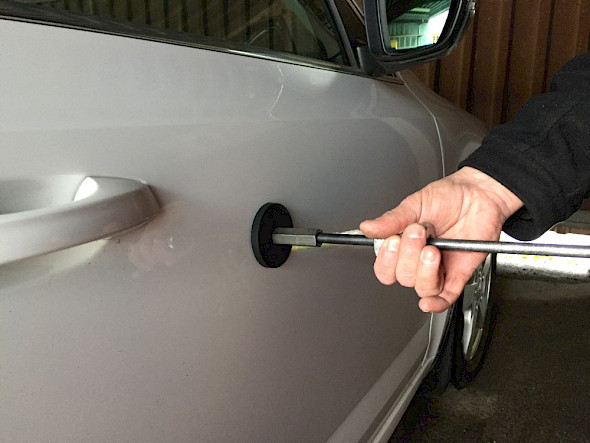

These rubber coated Neodymium (NdFeB) pot magnets are especially suitable for magnetically fixing objects such as advertising displays or safety blinkers onto car roofs (the metal work must have a mild steel content - aluminium or carbon fibre surfaces will not work). They are also suitable for fixing signs, plates, temporary lightings and sample parts scratch-free onto highly polished chrome-plated or painted mild steel (ferrous) surfaces. The rubber coating also provide a good level of corrosion protection in humid conditions.

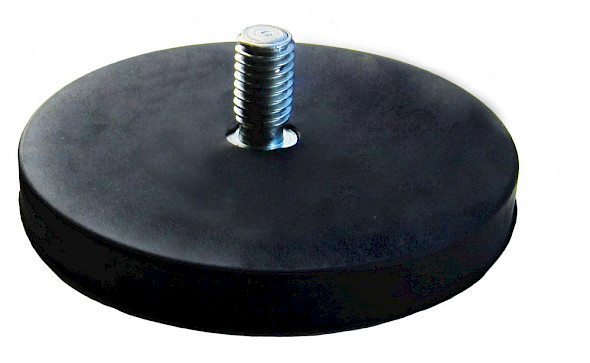

Because of their high performance, slide resisting properties and paint work protection ability, these rubber coated Neodymium (NdFeB) pot magnets are sometimes also known as Boutique Magnets. Two versions are available: Threaded neck (external male threaded stud) - you could attach a nut to this design style; and Screwed bush (external female threaded bush) - you could attached a bolt to this design style. Other sizes, shapes and grades may be available by special request.

产品型号

产品型号Bush dia. (mm)CoatingColourDia. dHeight (mm)Holding force (kg)Thread size
E851N/ASantoprene RubberBlack22mm6mm5M4x6.5mm
E853N/ASantoprene RubberBlack43mm6mm8.5M6x15mm
E854N/ASantoprene RubberBlack66mm8.5mm18M8x15mm
E855N/ASantoprene RubberBlack88mm8.5mm42M8x15mm
E851/18mmSantoprene RubberBlack22mm6mm5M4
E853/18mmSantoprene RubberBlack43mm6mm8.5M4
E854/110mmSantoprene RubberBlack66mm8.5mm18M5
E855/112mmSantoprene RubberBlack88mm8.5mm42M8
