Quick Magnetic Clamps

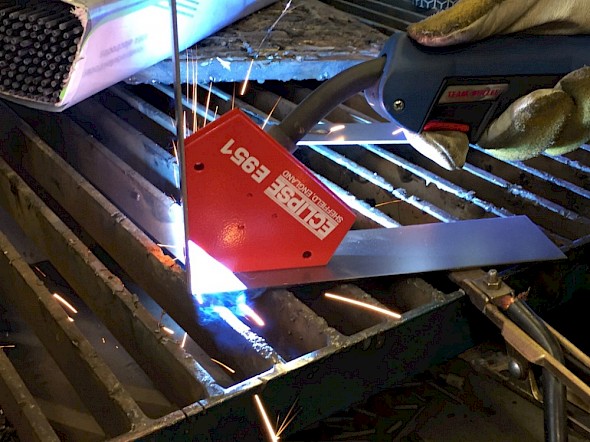

Fast application for multi-angled welding
- Fast and accurate holding of ferrous materials for welding and assembly applications
- Holds workpieces at 30,45,60,75 and 90° angles
- Also suitable for retrieval applications
- Par numbers E951 and E953
产品型号
| 产品型号 | Angles | Length (mm) | Height (mm) | Width (mm) | Weight (kg) | Pull force (kg) |
|---|---|---|---|---|---|---|
| E951 | 30°, 45°, 60°, 75°, 90° | 100.5 | 65.5 | 12 | 0.3 | 10 |
| E953 | 30°, 45°, 60°, 75°, 90° | 100.5 | 65.5 | 20 | 0.4 | 15 |
