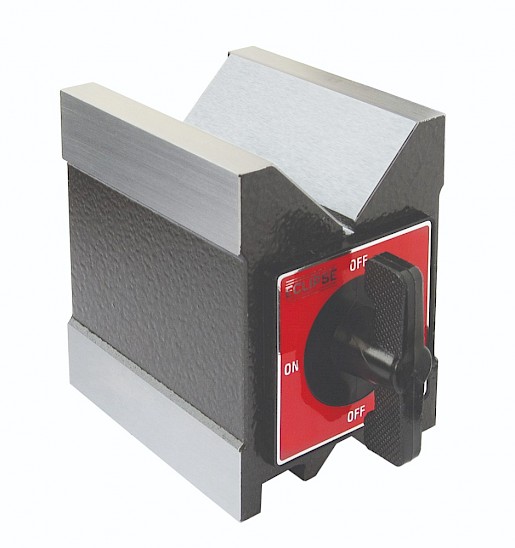

Magnetic V Blocks
Securely hold workpieces for grinding, marking or spark erosion
- Easy to engage and release the workpiece
- Instant, accurate clamping
- Can be used on its base, side or end
产品概览 - Magnetic V Blocks
Ideal for holding cylindrical and other complex workpieces for marking, spark erosion, grinding and measurement. The 'v' and the base are both magnetic. Both are energised / de-energised at the same time by the toggle switch. Securing the base to any flat ferrous surface and securing the workpiece to the holding area.
See our range of Workholding Systems
产品型号
| 产品型号 | Width (mm) | Length (mm) | Height (mm) | Max dia. of workpiece top 'v' (mm) | Max dia. of workpiece bottom 'v' (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 25 Micron Accuracy | ||||||
| E934 | 70 | 101.6 | 95 | 65 | 22 | 1.98 |
| E934MP | 70 | 101.6 | 95 | 65 | 22 | 3.96 |
| E935 | 70 | 80 | 95 | 65 | 22 | 3.12 |
| E935MP | 70 | 80 | 95 | 65 | 22 | 6.24 |
| 10 Micron Accuracy | ||||||
| E933A | 70 | 120 | 95 | 65 | 22 | 4.4 |
| E933MPA | 70 | 120 | 95 | 65 | 22 | 8.8 |
| E935A | 70 | 80 | 95 | 65 | 22 | 2.95 |
| E935MPA | 70 | 80 | 95 | 65 | 22 | 5.9 |
