Complete Magnetic Bases with fitment arms
Quick and easy attachment , ideal for mounting components
Hover to zoom

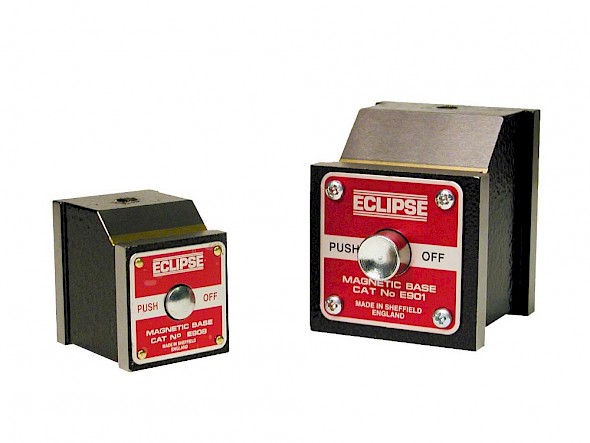

Magnetic Bases Push Button
Push button activated magnetic base for mounting components
- Push button switched magnetic bases to hold Eclipse Magnetics fitments for inspecting workpieces.
- Can be located on any ferrous surface to provide rigid support
- Magnetic on 4 sides
- Can clamp onto curved and flat surfaces
- A range of fitments also available
- Part numbers E900WF and E901WF
产品型号
| 产品型号 | Length (mm) | Width (mm) | Height (mm) | Screw Thread (mm) | Weight (kg) | Hold (kg) |
|---|---|---|---|---|---|---|
| E900WF | 48 | 40 | 52 | M8 | 0.5 | 30 |
| E901WF | 64 | 64 | 76 | M8 | 1.7 | 80 |
