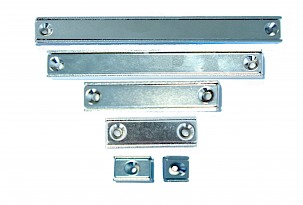

Neodymium Channel Magnet
High strength, ideal for holding, attaching or fixing applications
Ideal for holding and fixing applications such as door latches

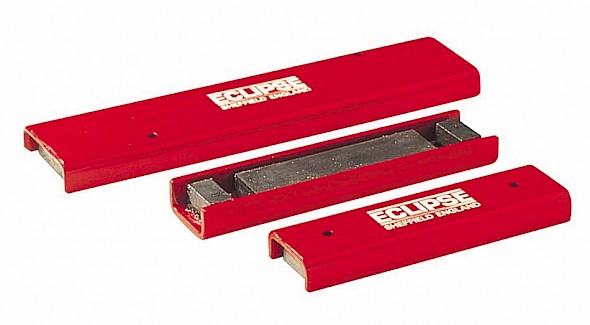

产品概览 - Ferrite Channel Magnets
These are C -profile ferromagnetic mild steel channels within which are placed magnets. They have a rectangular shape and work in a similar way to pot magnets.
The ferrite magnet versions can operate at temperatures up to a maximum of +120 degrees C. The channel magnets have two 4.2mm diameter fixing holes in the mild steel back plate section to allow them to be screwed onto an assembly.
产品型号 | Length (mm) | Width (mm) | Height (mm) | Plain fixing holes | Hole centres | Weight (kg) | Pull force (kg) | Units per pack |
---|---|---|---|---|---|---|---|---|
E898/1 | 115 | 30 | 13 | 4.2 | 80 | 0.25 | 8 | 5 |
E898/2 | 130 | 30 | 13 | 4.2 | 90 | 0.3 | 14 | 5 |
E899 | 190 | 43 | 13 | 4.2 | 110 | 0.55 | 48 | 2 |
