Alnico Pocket Magnets
For attracting, holding, clamping steel parts
Hover to zoom

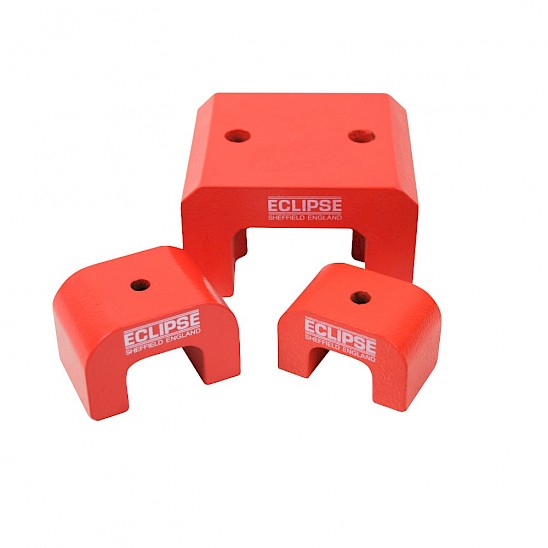

Alnico Power Magnets
For Holding & Clamping Applications
- For retrieval, holding, clamping, welding and soldering fixtures
- 550° maximum operating temperature
- Alnico 5 magnet material
- Good corrosion resistance
产品概览 - Alnico Power Magnets
The Alnico horseshoe magnet is a classic Alnico magnet shape. Sometimes the Alnico horseshoe magnet is called a C-shape magnet and is also known as a pocket Alnico horseshoe magnet, a minor Alnico horseshoe magnet, and a power Alnico horseshoe magnet - they are all Alnico horseshoe magnets but have different sizes and performances .
The Alnico horseshoe magnets are capable of operating at temperatures of up to a maximum of +550 degrees C. The Alnico horseshoe magnets are supplied in natural (uncoated / unpainted) and red paint finishes. The Alnico horseshoe magnets can be offered in other dimensions and grades.
产品型号
| 产品型号 | Height (mm) | Width (mm) | Height (mm) | Width of gap (mm) | Hole size (mm) | Hole centres (mm) | Weight (g) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|---|---|---|---|
| 811 | 30 | 20 | 20 | 15 | 5 | n/a | 60 | 4.5 | 5 |
| 812 | 40 | 25 | 25 | 20 | 5 | n/a | 120 | 9 | 5 |
| 813 | 45 | 30 | 30 | 23 | 5 | n/a | 180 | 11.8 | 2 |
| 814 | 57 | 44.5 | 35 | 27.8 | 2 X 7.9 | 31.75 | 370 | 23.5 | 1 |
| 815 | 70 | 57.2 | 41.3 | 34.1 | 2 X 7.9 | 38.10 | 710 | 37 | 1 |
| 816 | 79.4 | 82.6 | 54 | 38.1 | 2 X 9.5 | 42.86 | 1450 | 47 | 1 |
| 817 | 60.3 | 62 | 39.7 | 31.75 | n/a | n/a | 800 | 35 | 1 |
| 818 | 79.4 | 85.7 | 54 | 47.6 | n/a | n/a | 1800 | 60 | 1 |
