90° Fixed Welding Clamps Switchable
Easy, quick set up ideal for welding and assembly
90 Degree Fixed Magnetic Welding Clamps
Fast and easy clamping/holding of components at 90°
- Fast, cost effective clamping of components rigid at 90° angles
- Ideal for weld preparation, fabrication and assembly of large components
- For jigging on sheets, pipes and tubes
- 2 magnetic faces provide 90° clamping
- Angular tolerance: +/- 0.05/100mm
产品型号
| 产品型号 | Angles | Length (mm) | Height (mm) | Width (mm) | Weight (kg) | Pull force (kg) |
|---|---|---|---|---|---|---|

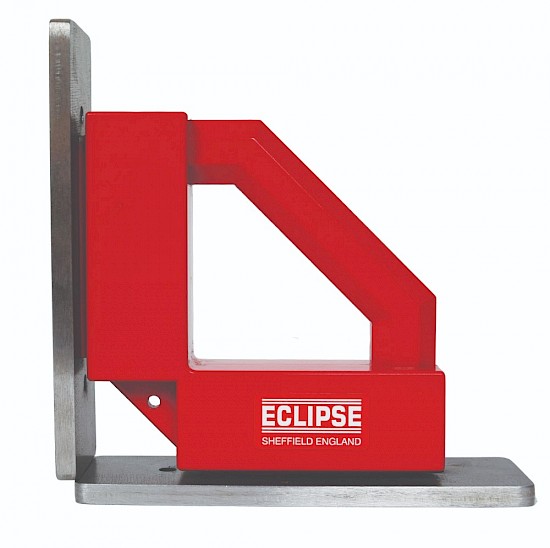

| E971 | 90 ̊ | 140 | 140 | 35 | 1.40 | 40 |

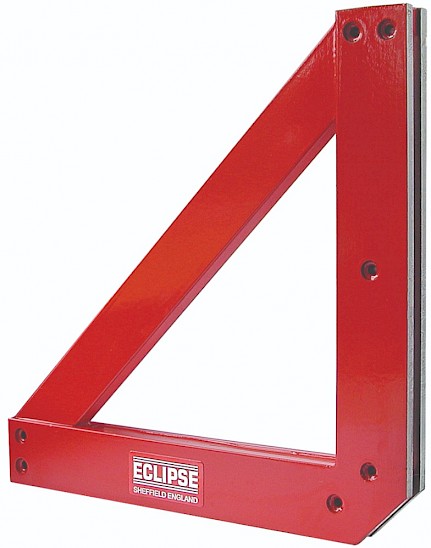

| E972 | 90 ̊ | 225 | 225 | 22 | 2.20 | 75 |

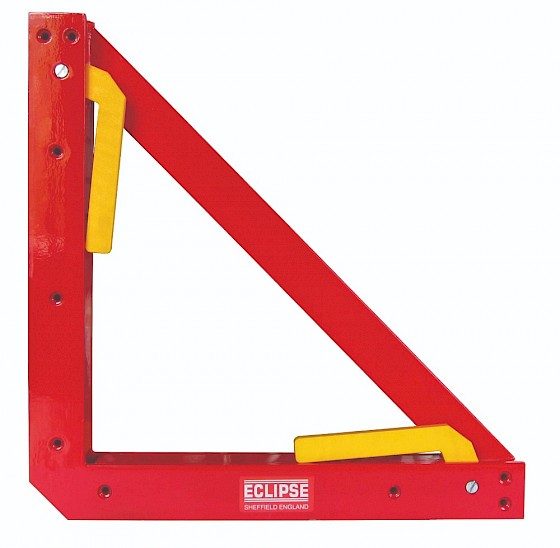

| E973 | 90 ̊ | 300 | 300 | 35 | 4.70 | 200 |
