# Glossary of Magnetic Terms

## Air Gap

A non-magnetic discontinuity in a magnetic circuit (i.e. the distance between two magnetic poles), this gap often includes other materials such as brass, aluminium or paint.

## Anisotropic Magnet

A magnet which has a preferred direction of orientation so that the magnetic characteristics are optimum in one preferred direction.

## Closed Circuit

This exists when the flux path external to the permanent magnet is confined within high permeability materials which contain the magnet circuit.

## Coercive Force, Hc

The demagnetising force necessary to reduce observed induction B to zero after the magnet has been brought to saturation. Coercive force is measured in Oersteds or more recently A/m and kA/m.

## Curie Temperature, Tc

The temperature at which a material loses its permanent magnetic properties completely and is no longer able to hold magnetism.

## Demagnetisation Curve

The second/left quadrant of the hysteresis loop, generally describing the behaviour of magnetic characteristics in actual use. Also known as the B-H curve.

## Ferromagnetic Material

A material whose permeability is very much larger than one, and which exhibits hysteresis magnetising and demagnetising characteristics. The greater the flux carrying potential, the bigger the value i.e. one to several thousands.

## Flux

Magnetic flux is the condition existing in a medium subjected to a magnetising force. This value is quantified by E.M.F. (electromotive force). This measurement of force in cgs units is a Maxwell.

###### Fringing Fields

Leakage flux particularly associated with edge effects and leakage patterns in a magnetic circuit.

## Gauss

Lines of magnetic flux per square centimetre. Gauss is measured in cgs units, Maxwell lines and Webers per square metre or Tesla in the Si system.

###### Hysteresis Loop

A closed curve calculated by plotting corresponding values of magnetic induction: B on the abscissa against magnetising force H.

## Induction, B

This is the magnetic flux per unit area of section in the applied magnetic direction of flux. This is measured in Gauss.

## Intrinsic Coercive Force

This is a measure of the resistance of the magnet material to a demagnetising force. Permanent magnets with high intrinsic coercivity values are usually classified as 'hard' permanent magnets. Intrinsic coercive force indicates magnetic stability at high temperatures. Also see stabilisation.

## Irreversible Loss

This is the partial demagnetisation of a magnet material when introduced to external factors such as high/low temperatures and demagnetising fields. Losses can only by rectified by remagnetisation. However, magnets can be stabilised to prevent the variation of performance caused by irreversible losses.

## Isotropic Magnet

A magnetic material which does not have a preferred direction of magnetic orientation and therefore can be magnetised in any direction without the loss of magnetic characteristics.

## Knee of the Demagnetisation Curve

The point at which the B-H curve ceases to be linear. If the operating point of the magnet falls below the knee, the magnet will not be able to recover full magnetic potential without the application of a magnetising force.

## Leakage Flux

This is the loss of magnetic flux which occurs through leakage caused by saturation or air gaps introduced into the magnetic circuit. This induces a loss of efficiency in the circuit which cannot be recovered.

## Length of Air Gap, Lg

Indicates the length of the central flux path across an air gap.

A line drawn from the origin of the Demagnetisation Curve with a slope. The intersection of the -B/H curve and slope represents the operating point of the magnet. Also see Permeance Coefficient, Pc.

## Magnetic Circuit

An assembly consisting of some or all of the following: permanent magnets, ferromagnetic conduction elements, air gaps, electrical currents.

## Magnetic Flux

The total magnetic induction over a given area.

## Magnetising Force, H

The magnetomotive force per unit length at any point in a magnetic circuit. This is measured in Oersteds.

## Magnetomotive Force, F

This is the potential magnetic difference between any two points.

## Maximum Energy Product, BH max.

There is a point at the Hysteresis Loop at which the product of magnetising force H and induction B reaches a maximum. This maximum value is called the Maximum Energy Product and is measured in Mega Gauss Oersted, MGOe.

## Oersted, Oe

A unit measure of magnetising force (cgs). This is equivalent to Ampere Turns per Inch (S.I.).

## Permeance Coefficient, Pc

Ratio of the magnetic induction to self demagnetising force. This is also known as the 'load line' or operating point of the magnet.

## Pull Gap

Usually illustrated in graph format, these curves are a representation of the relationship between the attractive force exerted by a magnet on a soft magnetic workpiece and the distance between them. Pull Gap curve diagrams are useful when selecting a magnet for a particular tractive or holding application.

## Reluctance, R

Reluctance is the resistance in a magnetic circuit and is related to the magnetomotive force, F and magnetic flux (R =F/ magnetic flux) where F is the magnetomotive force.

## Remenance

Remenance is the magnetic induction which remains in a magnetic circuit after the removal of an applied magnetising force. If there is an air gap in the circuit, the remenance will be less than the residual induction Br.

## Residual Induction Br

This represents the maximum flux output from a given magnet material measured at the point where the Hysteresis Loop crosses the B axis at zero magnetising force.

## Return Path

A magnetic circuit which provides a low reluctance path for the magnetic flux. Reversible Temperature Coefficient A measure of the reversible changes in flux caused by temperature variations.

## Saturation

This is the condition whereby a magnet or ferromagnetic material has reached a maximum value and an increase in the appliance of magnetising force produces no increase in induction i.e. saturation flux densities for steels range from 16,000 to 20,000 Gauss.

## Stabilisation

The process where a magnet is exposed to demagnetising influences expected to be encountered in operation. The exposure to these demagnetising influences such as high or low temperatures or external magnetic fields prevents irreversible losses during actual operation.

"我们很高兴从一开始就使用了易克磁性技术的产品和服务。”

AB MAURI UK & Ireland

"我无法告诉你磁性过滤器对我们的帮助有多大！磁性过滤器解决了我们很多的问题，超出了我们的想象，它甚至清除了30年了堵塞污垢！”

"这个产品经济，可靠，高效。我相信未来磁过滤技术必将广泛使用。"

MMTCI

"易克磁性过滤出乎意料地能够清洁我们的液体，并且改善了成品的表面处理质量。它每天能够过滤掉50公斤的金属颗粒."

Milacron Machines

"我们选择易克磁性技术是因为他们是个值得尊敬和悠久历史的品牌。他们能够提供非常有性价比的价格，服务过程非常好，安装及时，并且非常可靠。"

Simpsons Malt

“我们非常高兴安装了Automag;它解决了我们先前关于停工和维护成本的问题。安装过滤器后，可以使用回收水帮助我们每周节约了£1000!”

Vallourec

"我们公司的宗旨是制造客户容易使用的产品，可靠，经济！易克磁性技术的小磁铁有着最强的磁性性能和最为经济的性价比。"

Qualflow Systems Ltd

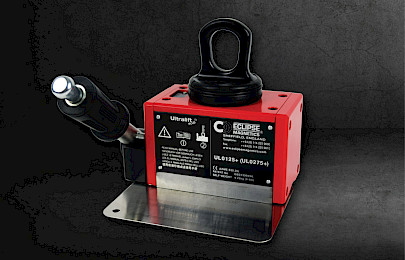

"易克磁性技术的Ultralift Plus磁性起重器是捡取和运输我们设备中的超声波校准块完美应用。"
